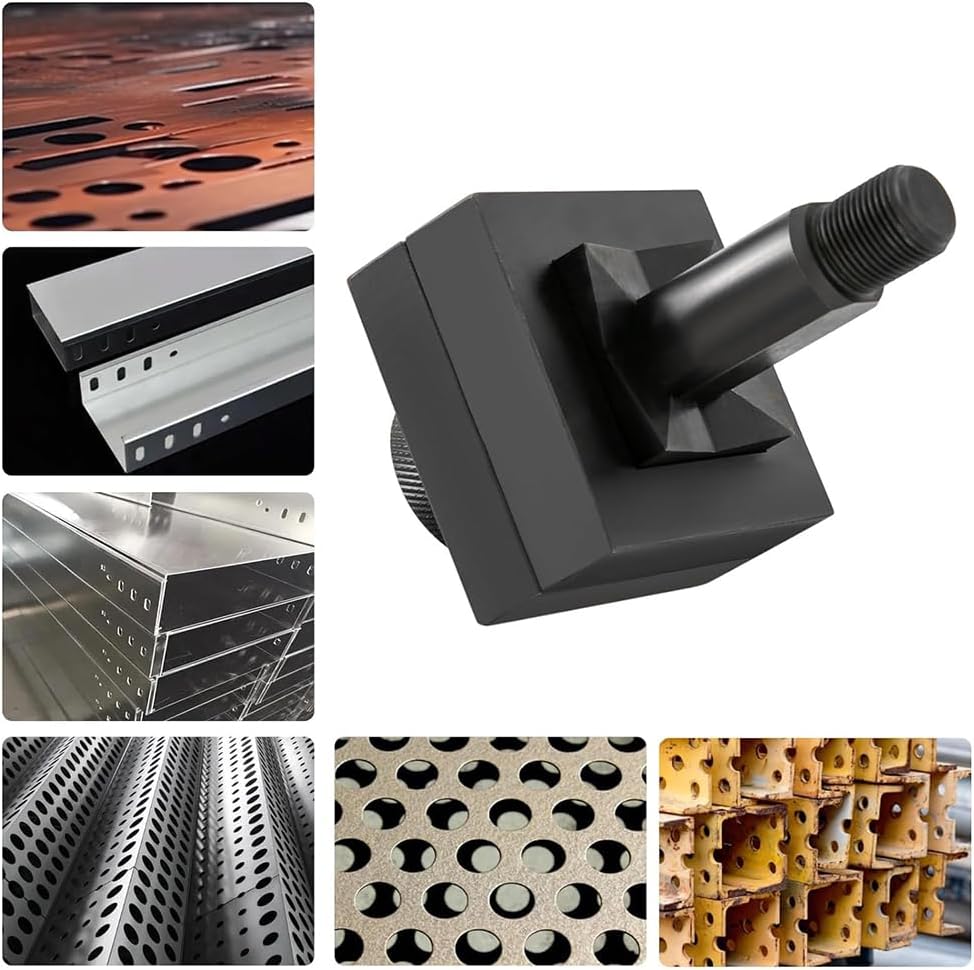

45mm Hydraulic Square Punching Die, Manual Hydraulic Hole Punch Knockout Die Hole Punch Tool for Drilling in The Manufacturing Industry, Cr40 Black,1

Crafted from premium 40# chrome steel, this hydraulic hole punch die ensures exceptional durability and strength. Thanks to its small size and lightweight, you can carry and store this product easily and conveniently. It enables fast and reliable drilling with burr-free results, making it an ideal tool for effortlessly creating holes. A reliable assistant for efficient operations.ApplicationThis product is suitable for SYK series hole openers for cutting holes in iron plates, stainless plates, and distribution boxes.How to Use1.First, open a 1.08-in round hole on the board.2.Then put the plate on the lower mold of the product, and the upper mold on the plate.3.The nut on the tie rod is to turn tight to fix the mold.4.Then with the manual pump press up and down, the mold will slowly together. The middle plate will fall.5.Finally, open the mold and take out the plate from the middle.SpecificationsMaterial: Cr 40Surface Treatment: Blackening Treatment, Heat TreatmentColor: BlackShape: SquareType: DieApplicable Material: Stainless Steel Plate, Iron PlateOperation Mode: Manual/ElectricMax. Plate Thickness(Steel): 1.5mm/0.06inMax. Plate Thickness(Iron): 3mm/0.12inDie Clearance: 0.6-0.7mm/0.024-0.028inGross Weight: 3kg/6.61lbsNet Weight: 2.8kg/6.17lbsProduct Size: 45*45mm/1.77*1.77inPackage Size: 10*10*4cm/4*4*1.5inPackage Included1 X Hydraulic Punching Die

• Build to Last: It is made of high-quality Cr 40 by blackening and heat treatment, featuring high strength, heat resistance and durability, which can be reused.
• High Efficiency: It can be used with cylinders and hydraulic pumps (both not included) to achieve efficient drilling and significantly improve processing efficiency.
• Flexible Operation: It supports manual operation and can also be used with the machine (not included), meeting diverse application needs and greatly facilitating the operator.
• Easy to Use: After receiving the product, it does not need to be installed, all you just need to do is follow the operating procedures to operate it, which is convenient and fast. In addition, it can be molded by opening the hole and does not require secondary processing.
• Aplication: The hydraulic knockout punch die is mainly suitable for drilling in the manufacturing industry, especially for drilling operations in thin plates such as steel and iron sheets. It can be used with cylinders and hydraulic pumps.
