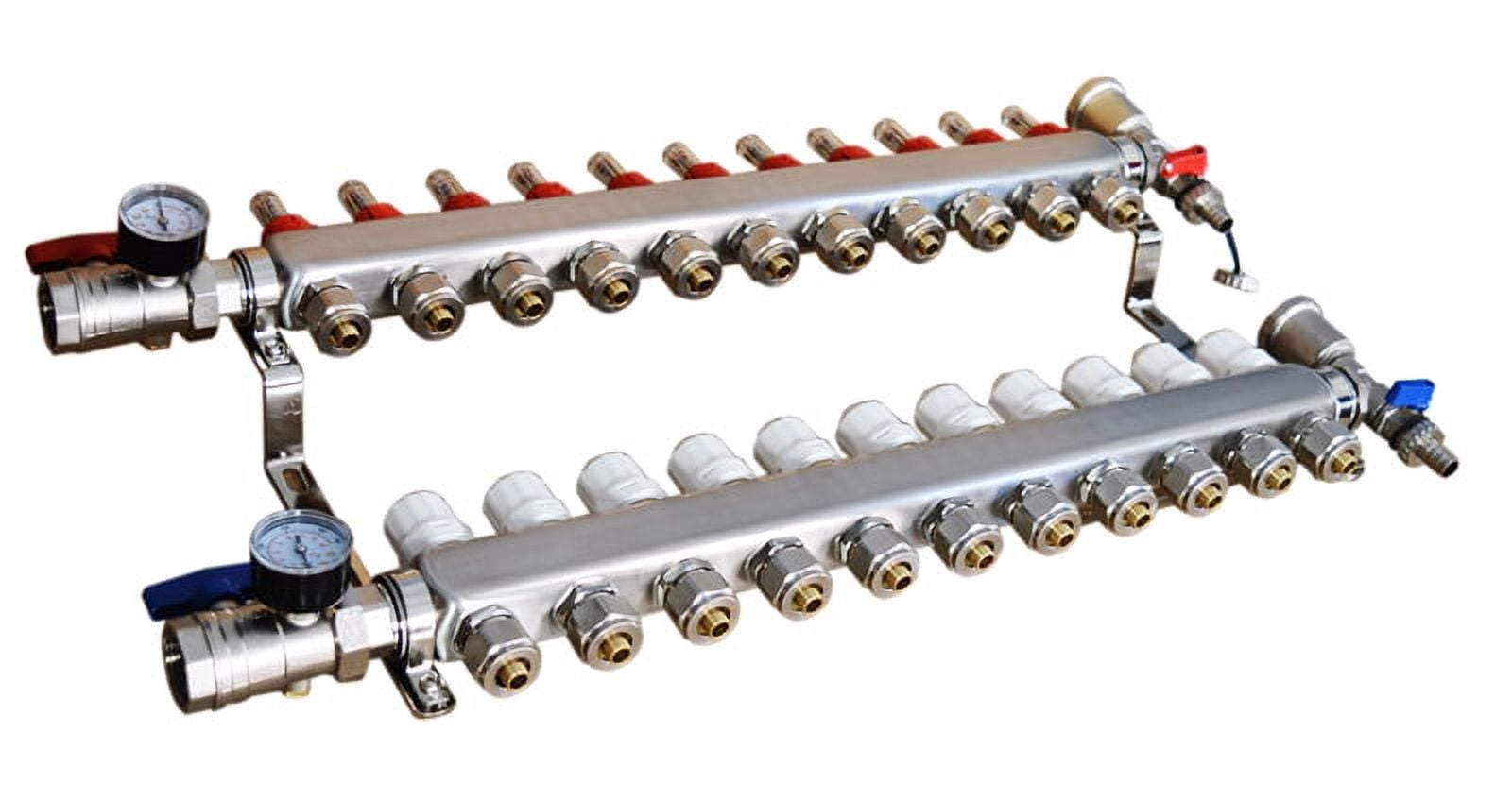

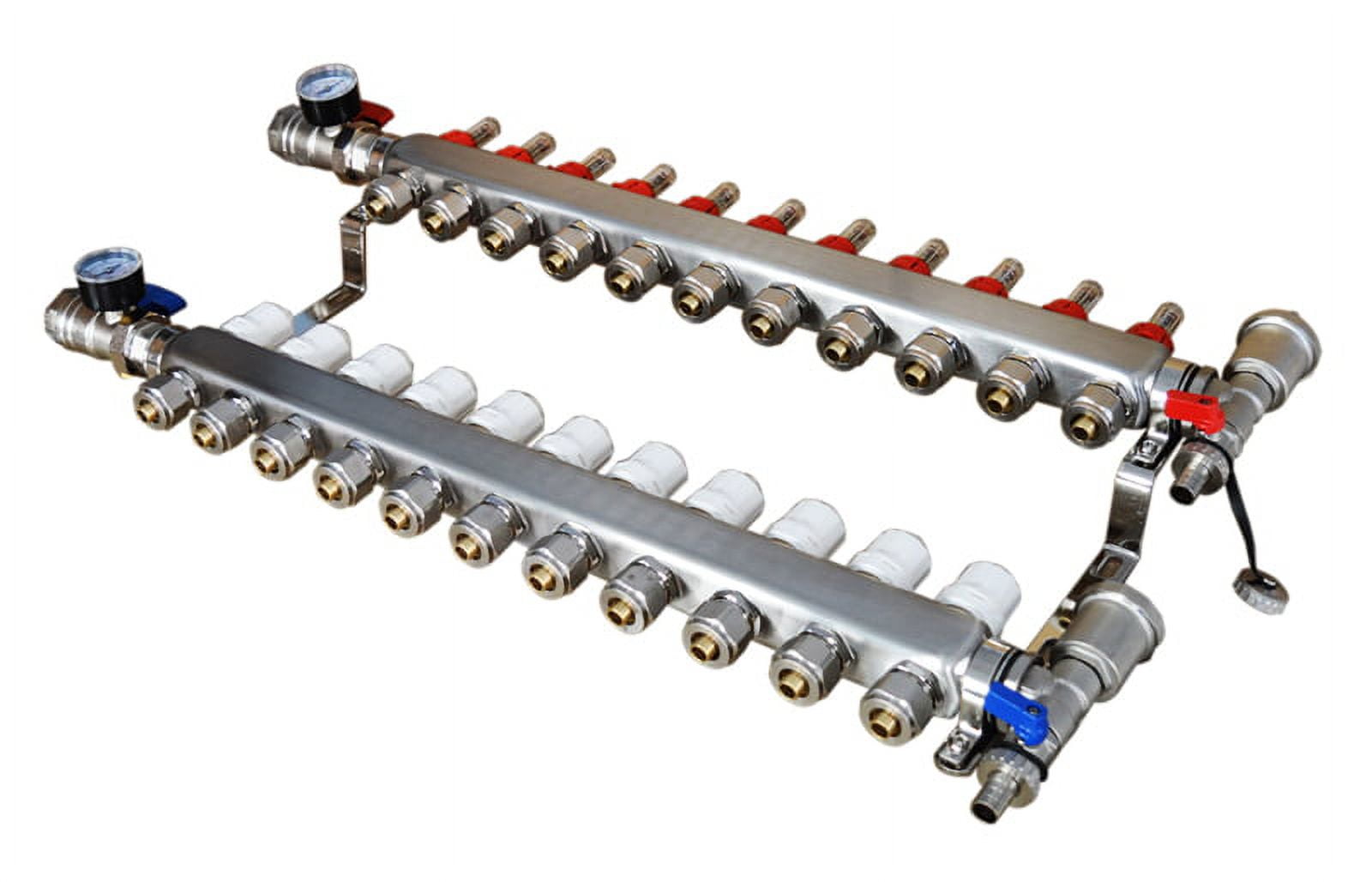

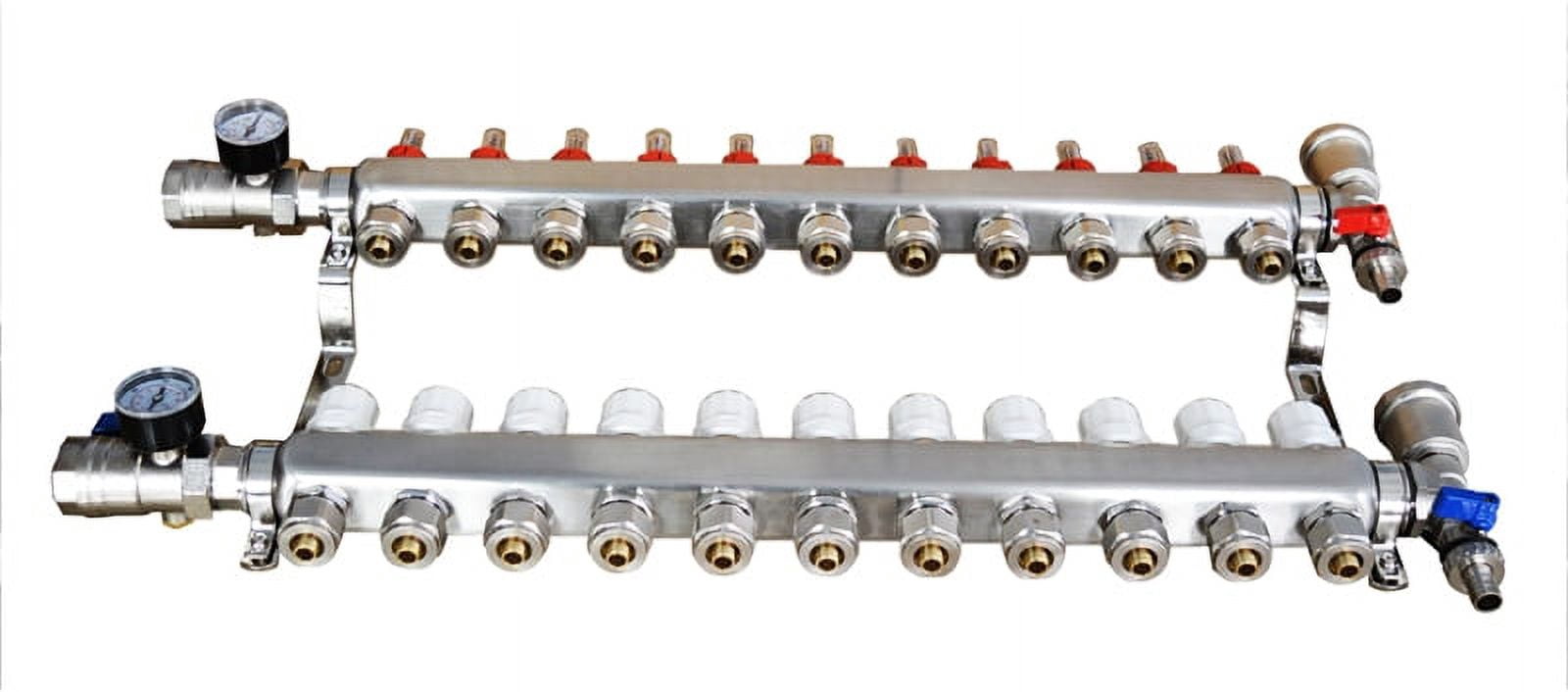

EQCOTWEA 11-Branch PEX Radiant Floor Heating Manifold Set Floor Heating Water Distributor Pipe Fittings Stainless Steel

INTRODUCTION: <br>EQCOTWEA 11-Branch PEX Radiant Floor Heating Manifold Set is widely used for heating in homes, schools, hotels, swimming pools and other places. <br>In the floor heating system, the mainfold is mainly responsible for the opening and closing of the water flow in the floor heating loop. When the heated water flows into the mainfold through the main pipeline, the water is evenly distributed to the loop, and after heat exchange, the water is returned to the water outlet. into the heating system. <br> <br>PARAMETERS: <br>Product Name: Intelligent Flow 11-Branch PEX Radiant Floor Heating Manifold Set <br>Product Model：MXR/102A Flow temperature control type <br>Material: main 304 stainless steel (chromium &gt; 18% nickel &gt; 8%) copper: 59 brass <br>Main connection thread at both ends: G 1" pipe thread (inner thread) <br>Branch pipe adapter：G 1/2" <br>Spacing of branch pipes: 50mm <br>Applicable temperature: 1~95°C <br>Applicable pressure: 1.5MPa <br>Main Tube diameter: equivalent to DN40 diameter <br>Applicable medium: water vapor <br>Temperature control trip: 3mm <br>Other: Visual flow, Easy to adjust, Seamless steel pipe, Tube thickness of 1.6 mm <br> <br>ITEMS INCLUDED: 053269 <br>EQCOTWEA 11-Branch PEX Radiant Floor Heating Manifold Set Floor Heating Water Distributor Pipe Fittings Stainless Steel

• Before leaving the factory, each set will be put in water for sealing test to ensure normal and safe use.
• No matter how the pressure difference of the system changes, the flow of each floor heating branch finally runs stably according to the heat load.
• Stainless steel surface after drawing and polishing treatment, beautiful and generous, smooth and easy to clean.The tube body has been degaussed, which does not absorb any impurities, effectively reduces friction and prevents scaling, and prolongs service life.
• Backwater branches are equipped with independently adjusted temperature control valves, which can control the backwater of branches separately to adjust the temperature. The water flow of each branch can be adjusted individually, so that the water flow of each channel will be balanced, thereby reducing energy consumption and achieving the purpose of energy saving.
• We have a variety of models, including 2/3/4/5/6/7/8/9/10/11/12 branch models, which can meet various needs to the greatest extent. If you have any questions, please contact us in time.
